Sallen-Key Filter
One of the most popular op-amp filter circuits is the Sallen-Key circuit. The main reason for its popularity is that is uses only a single op-amp and 4 external components to achieve a 4-pole filter.
Low-Pass Circuit

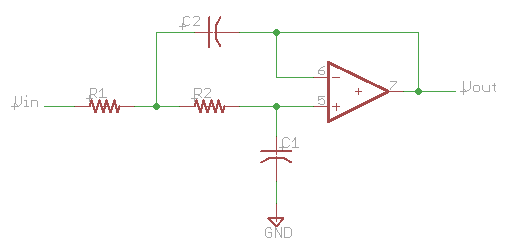

The diagram below shows the low-pass version of the Sallen-Key.
![](sk1.png)
The transfer function of this circuit is:
![](sk3.png)
Where
Solving this equation for we get:
![](sk5.png)
and:
![](sk6.png)
High-Pass Circuit

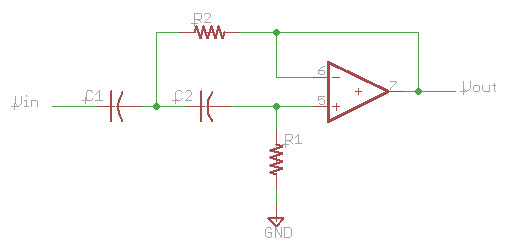

The diagram below shows the high-pass version of the Sallen-Key.
![](sk2.png)
The transfer function of this circuit is:
![](sk7.png)
Solving this equation for we get:
![](sk5.png)
and:
![](sk6.png)
The same results as with the low-pass version. (Another reason why this is such a popular topology!)
